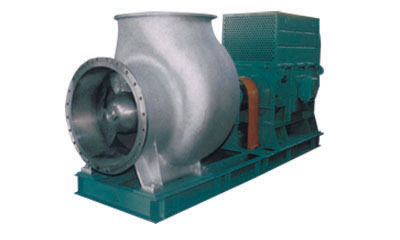

Horizontal axial-flow pumps “HZW” Series

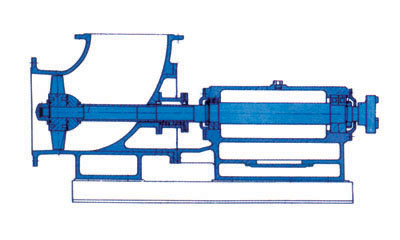

Design: Single-suction, axial-flow impeller with overhung, volute casing is angular
design, bearing bracket cooled by refrigerated water.
Service: Large capacity, low head.
DN: 250~900mm
Q: 200~11000m3/h
H: 2~5m
t: 0℃~180℃
